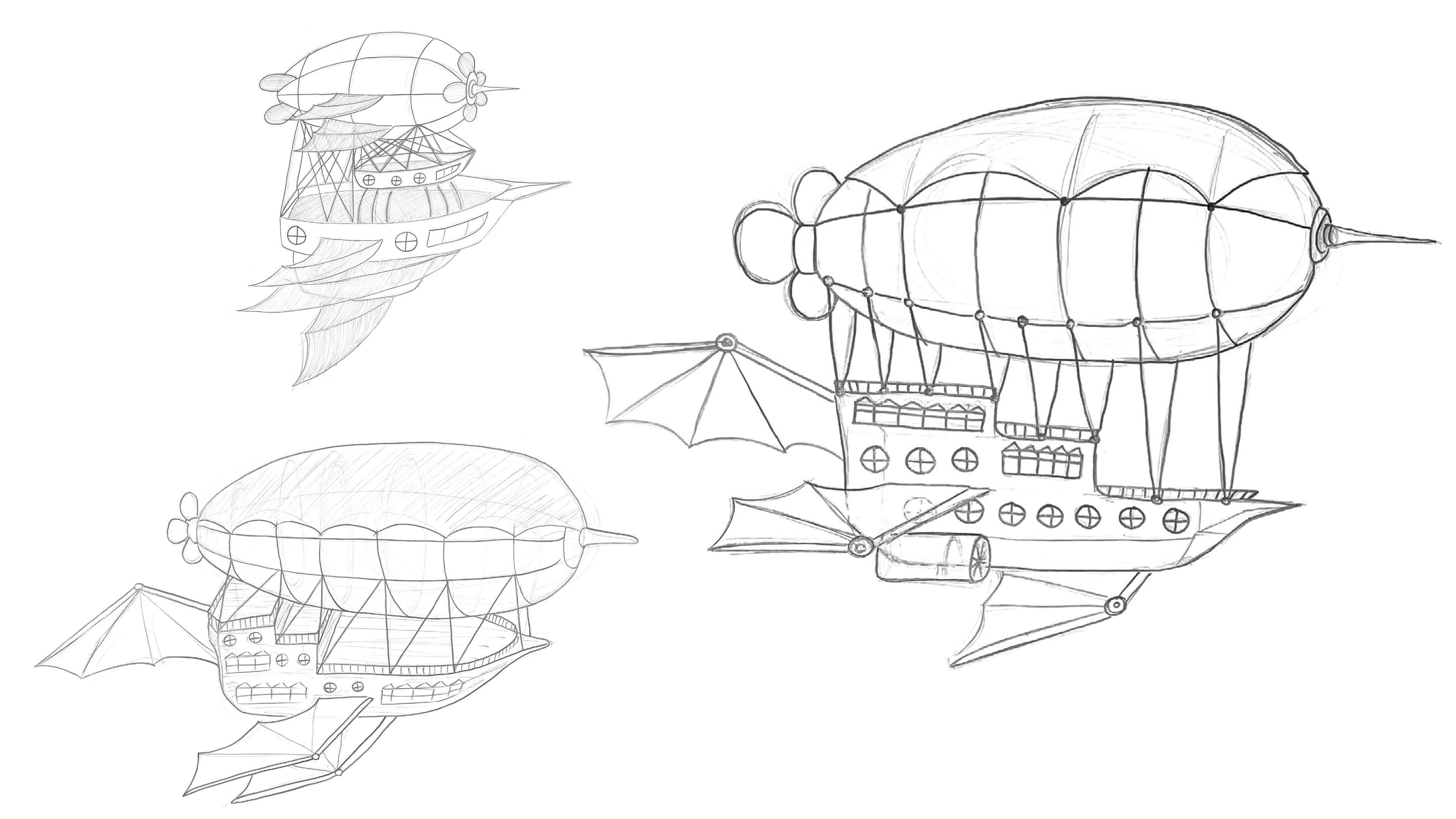

Exploration Sketches

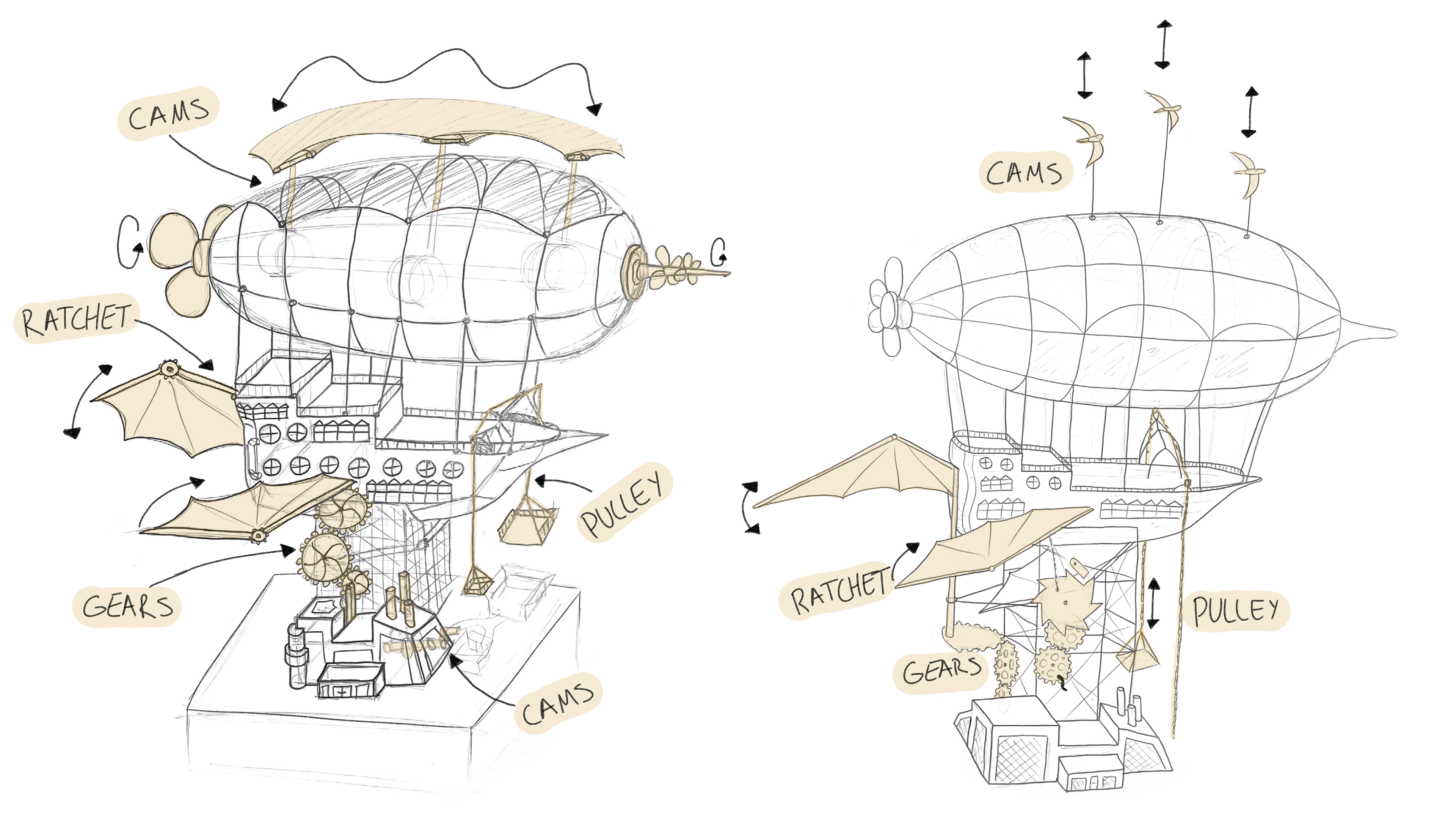

A Steam Punk inspired airship to match the mechanical theme. It was important to be able to see each mechanism and provide a range of different types to interact with. Mechanisms including cams, pulleys, levers, gears, and cranks.

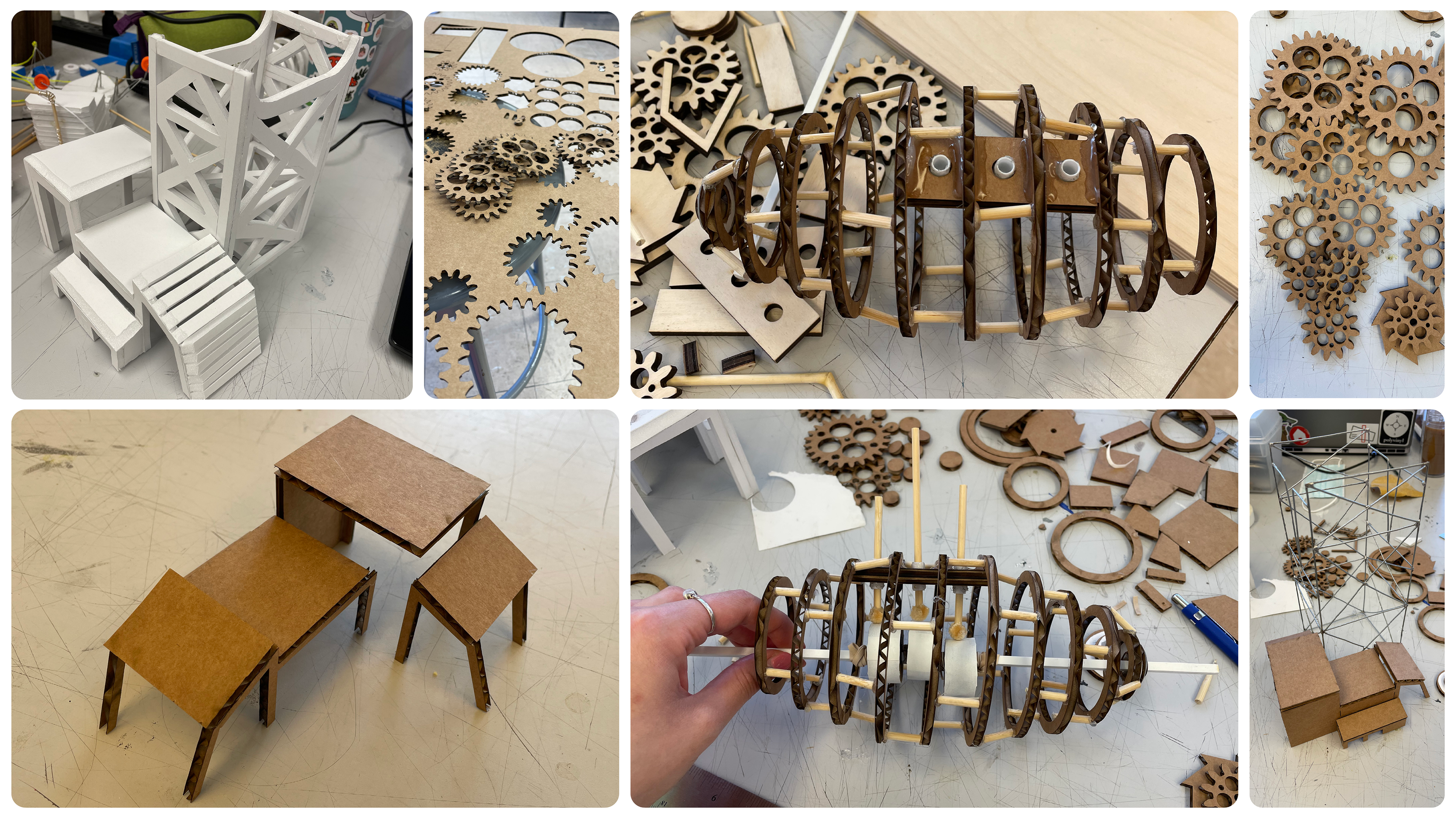

Foam Core and Card Board Prototypes

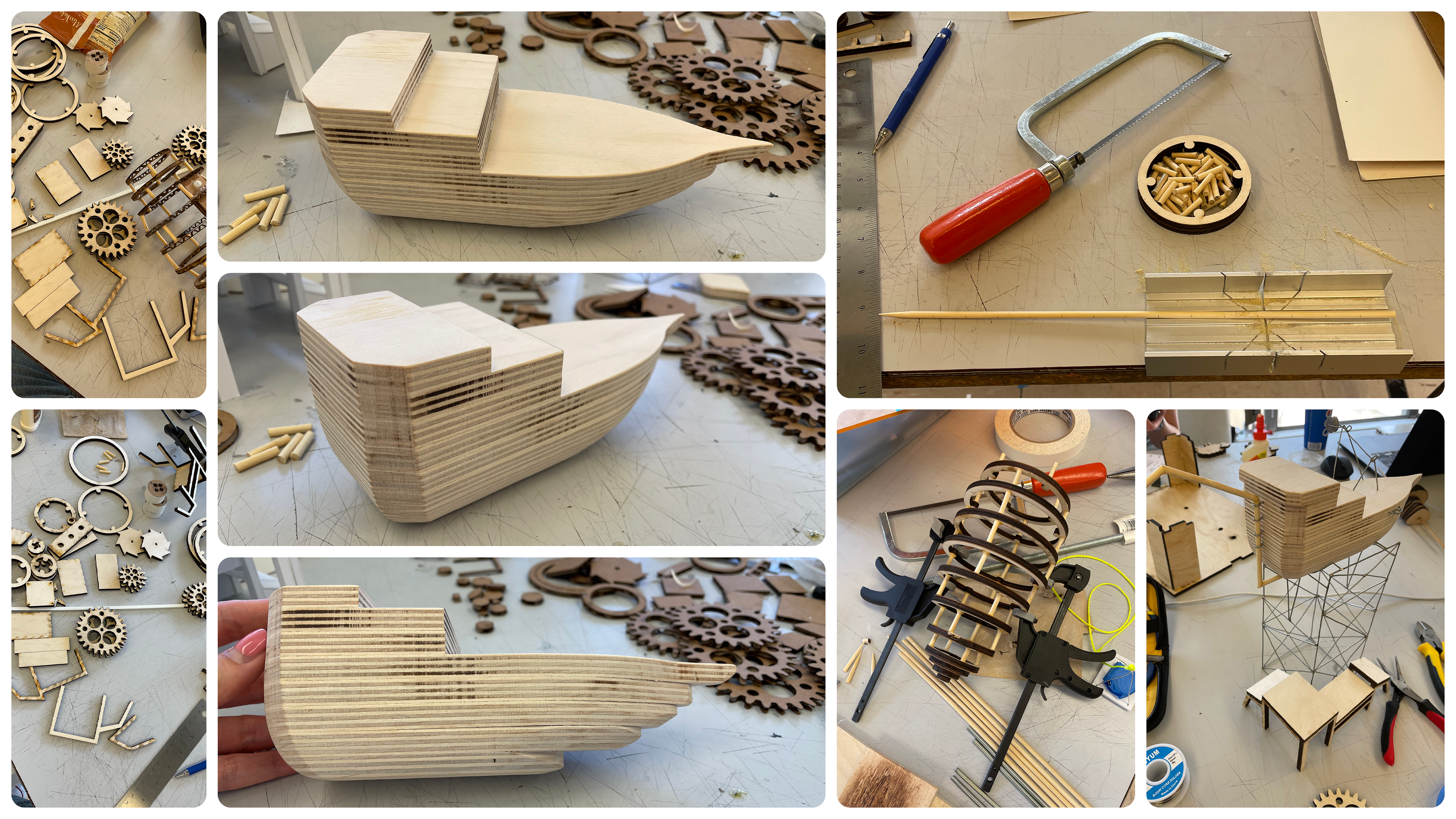

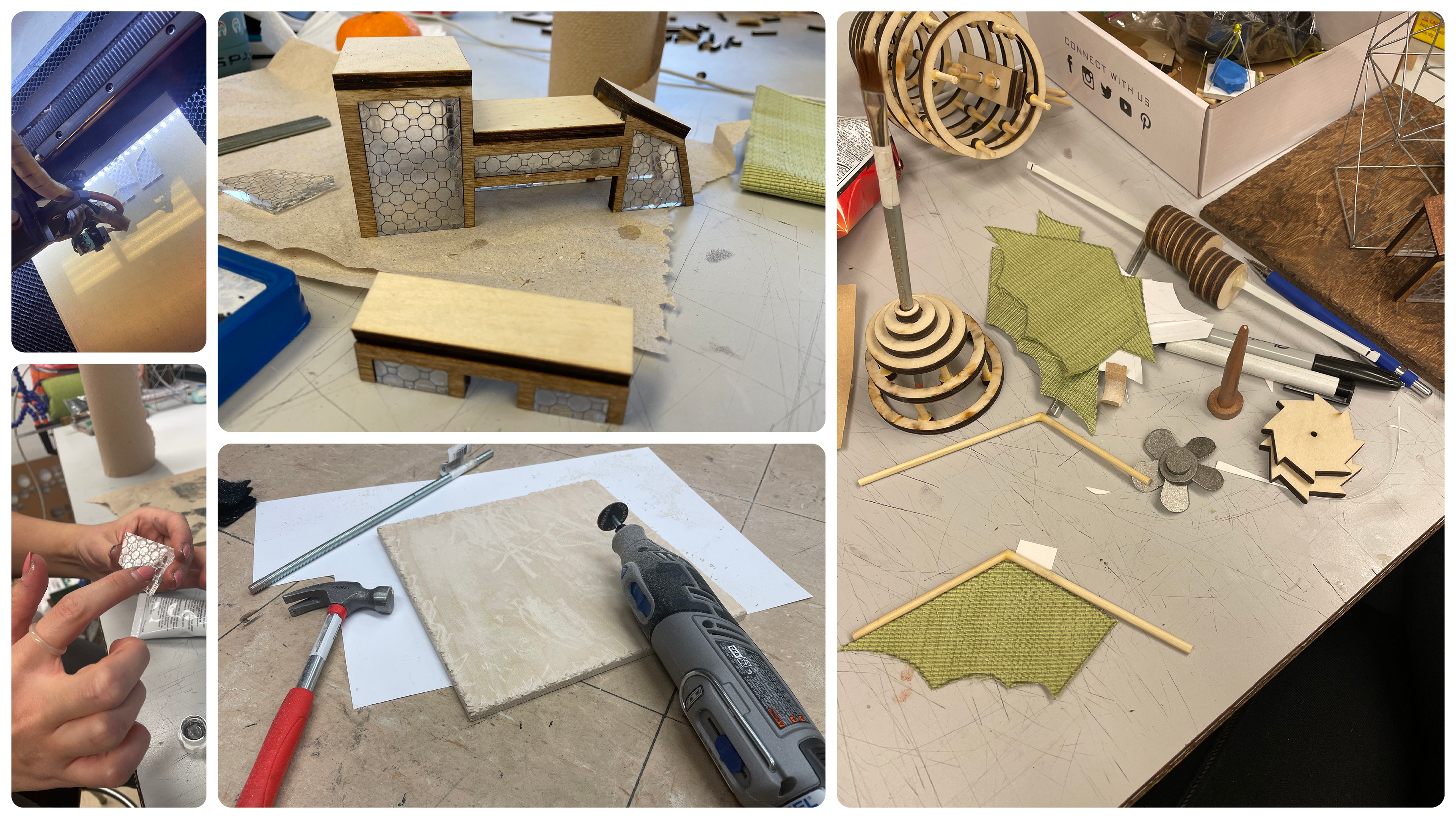

Construction of Final Model
Laser cut wood, Hand cut wood, Soldered wire, Laser cut acrylic, and Fabric

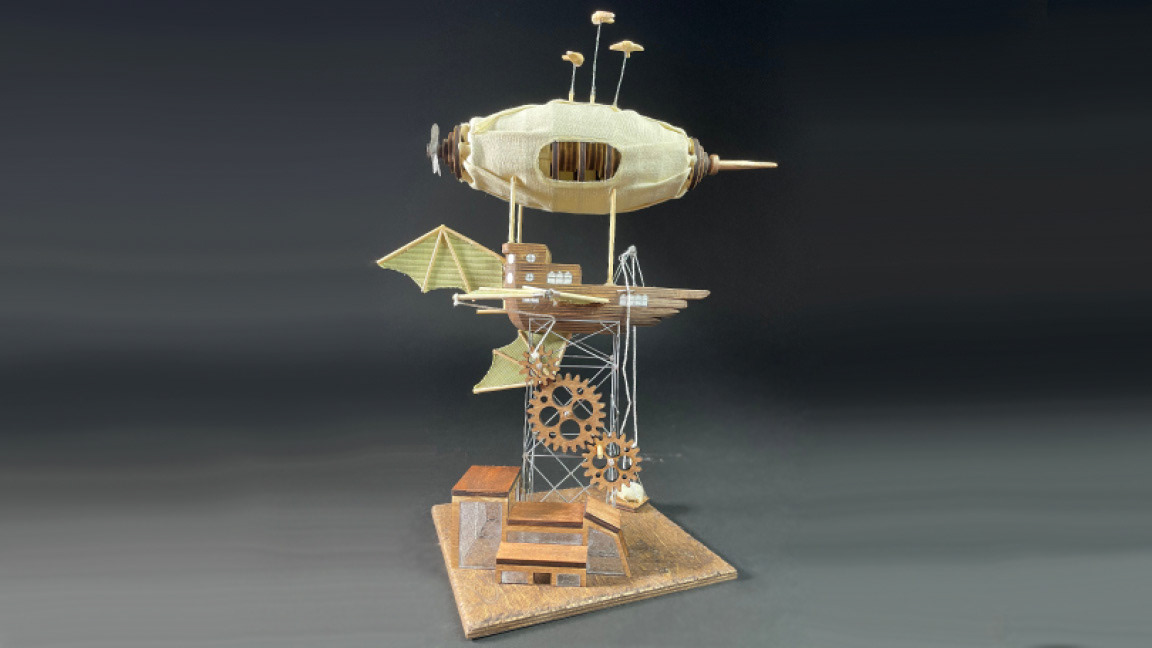

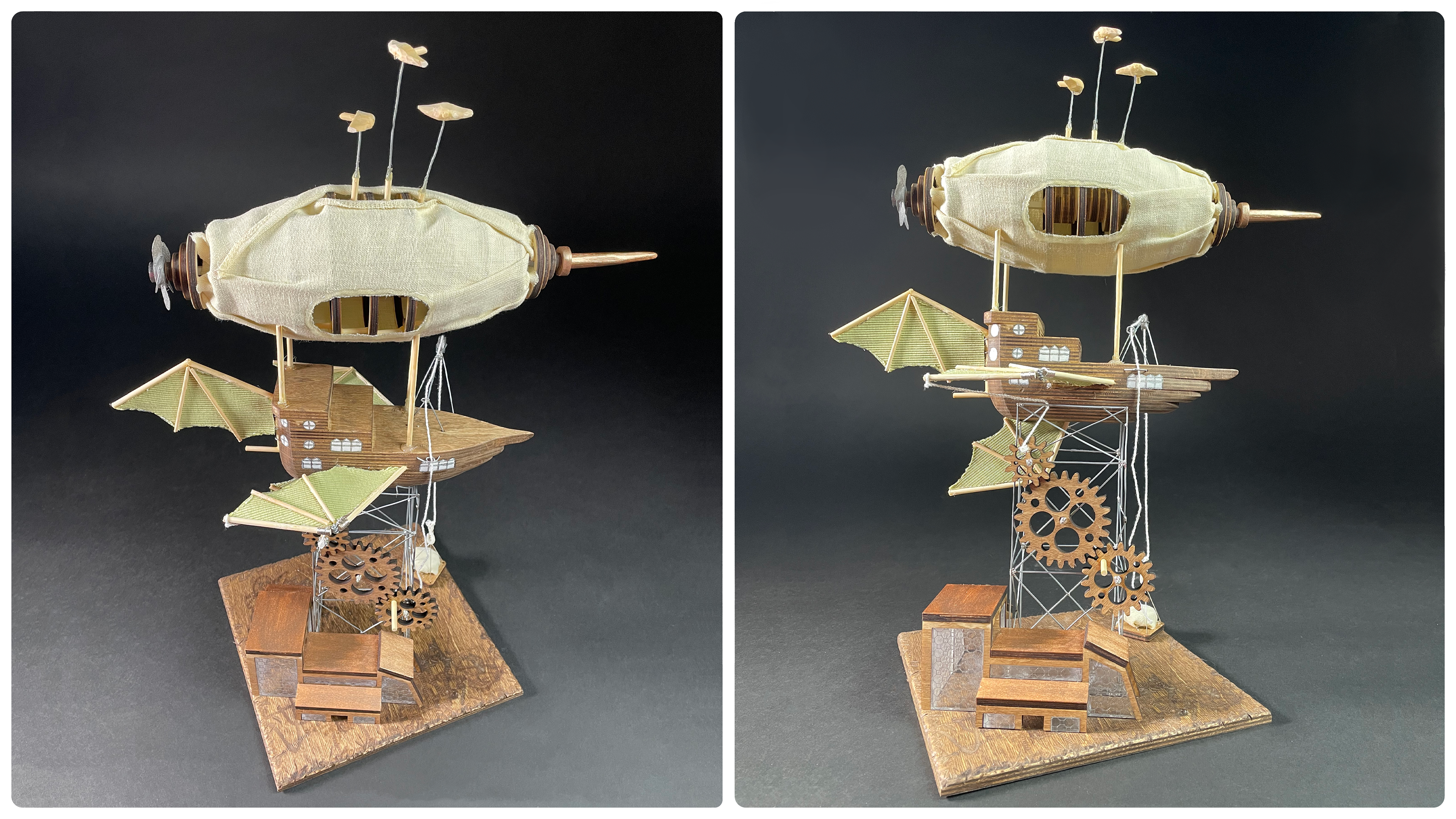

Final Model
Mechanisms in Action
